Regular price $40.00

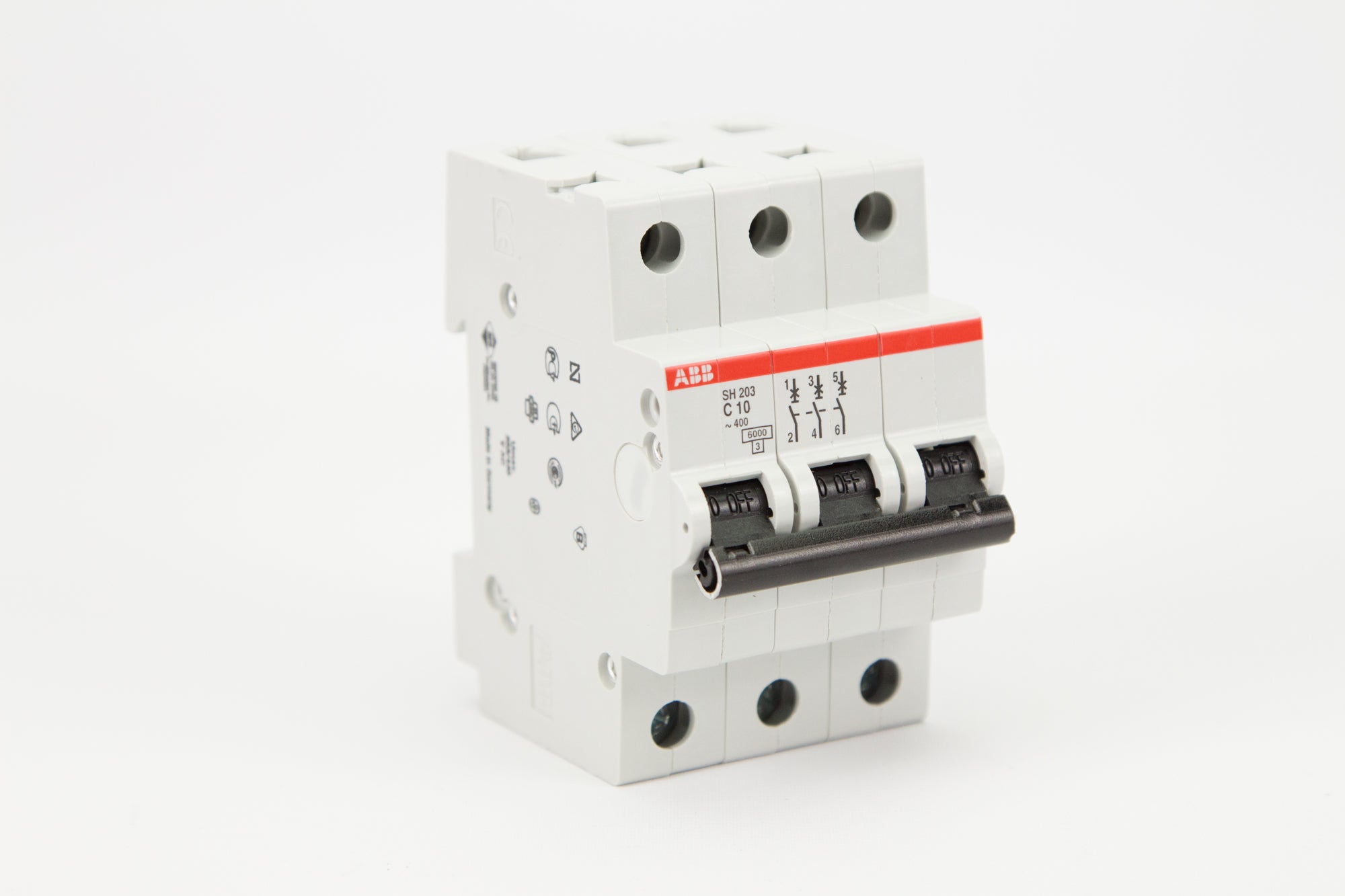

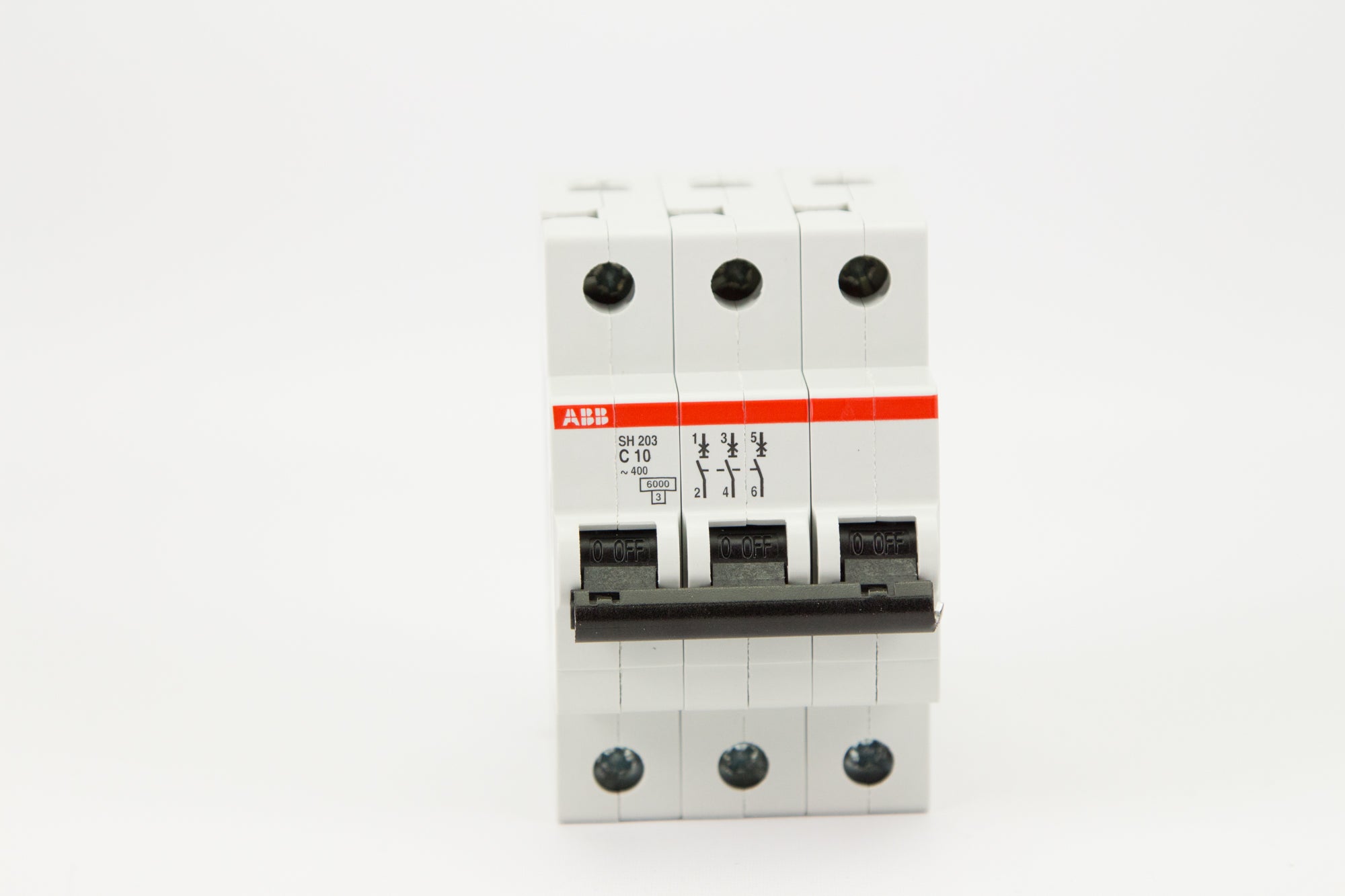

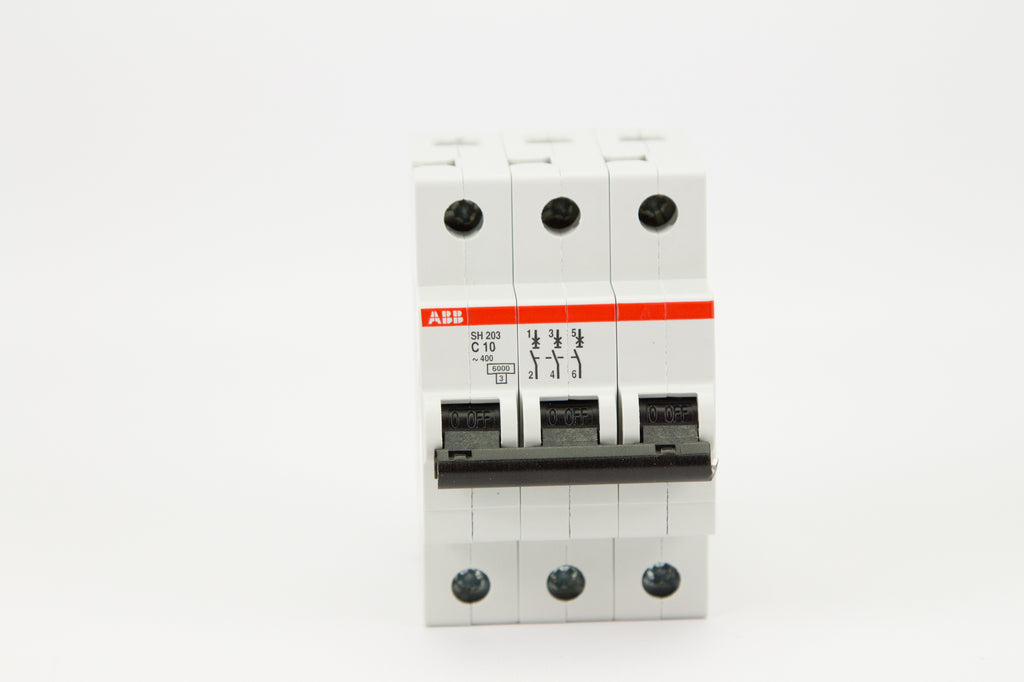

Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C),configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
|
Standards: |
IEC/EN 60898-1 |
|
Number of Poles: |
3 |
|
Tripping Characteristic: |
C |
|
Rated Current (In): |
10 A |
|
Rated Operational Voltage: |
Acc. to IEC 60898-1 400 V AC |
|
Power Loss: |
7.5 W at Rated Operating Conditions per Pole 2.5 W |
|
Rated Insulation Voltage (Ui): |
Acc. to IEC/EN 60664-1 440 V |
|
Operational Voltage: |
Maximum (Incl. Tolerance) 440 V AC Maximum 440 V AC Minimum 12 V AC |
|
Rated Frequency (f): |
50 Hz 60 Hz |
|
Rated Short-Circuit Capacity (Icn): |
(400 V AC) 6 kA |
|
Energy Limiting Class: |
3 |
|
Overvoltage Category: |
III |
|
Pollution Degree: |
2 |
|
Rated Impulse Withstand Voltage (Uimp): |
4 kV (6.2 kV @ sea level) (5.0 kV @ 2000 m) |
|
Dielectric Test Voltage: |
50 / 60 Hz 1 min: 2 kV |
|
Housing Material: |
Insulation Group II RAL 7035 |
|
Actuator Type: |
Toggle |
|
Contact Position Indication: |
ON / OFF |
|
Degree of Protection: |
IP20 |
|
Remarks: |
IP40 in enclosure with cover |
|
Electrical Endurance: |
20000 AC cycle |
|
Mechanical Endurance (Nendu): |
20000 cycle |
|
Terminal Type: |
Screw Terminals |
|
Mounting on DIN Rail: |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
