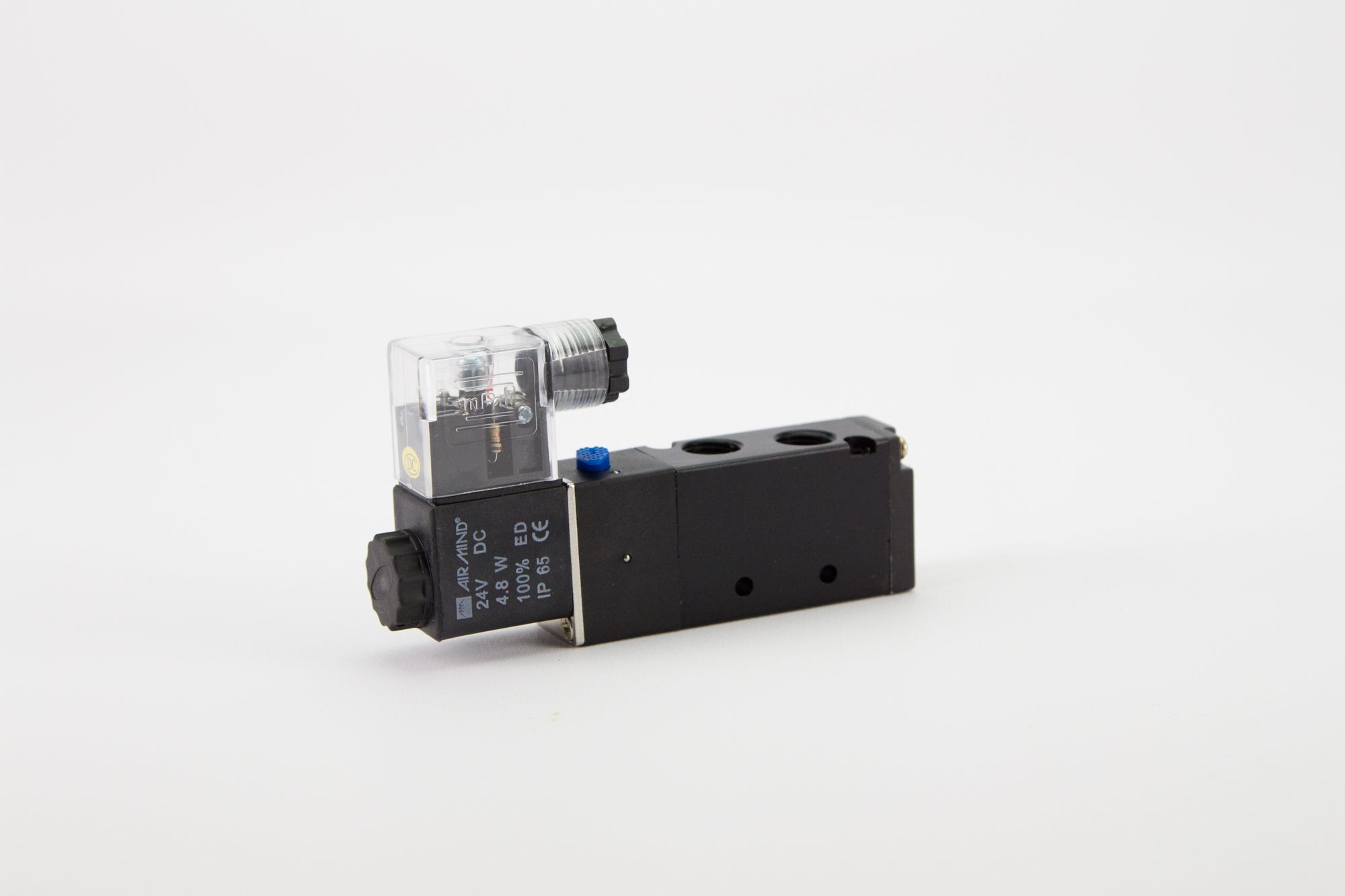

Directional control valves: 5/2-way single solenoid valve, actuated by solenoid and pneumatic piloting, air spring return, manual override

Type:5/2 Way Internally Piloted Acting Type Single Solenoid Valve

Model:MVSC260-4E1-DC24

Coil:24V DC,LED Light

Port Size:In=out=exhaust1/4 BSP

Effective area:25mm2

Operating temperature range:-5~55C°

CV Value:1.4

Coil Power:3VA

Working pressure range:1.5~8(kgf/cm2)

Proof pressure:10.5(kgf/cm2)

Voltage range:±10%

Power consumption:AC:4.5W DC:2.0W

Insulation and protection :Class F.IP65

Wiring method wire type or terminal type

Frequency:5/s

Response time:50ms
