Regular price $2,995.00

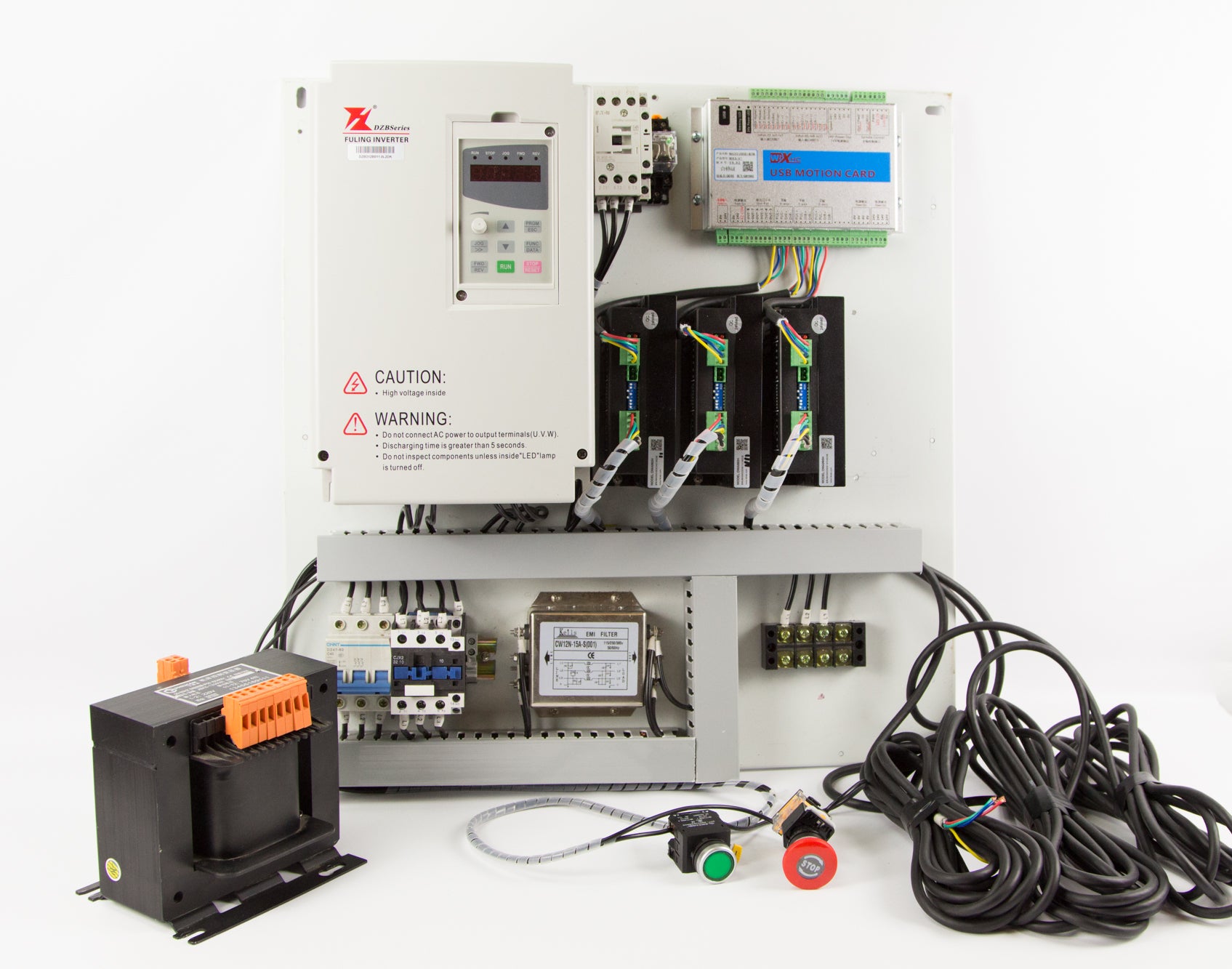

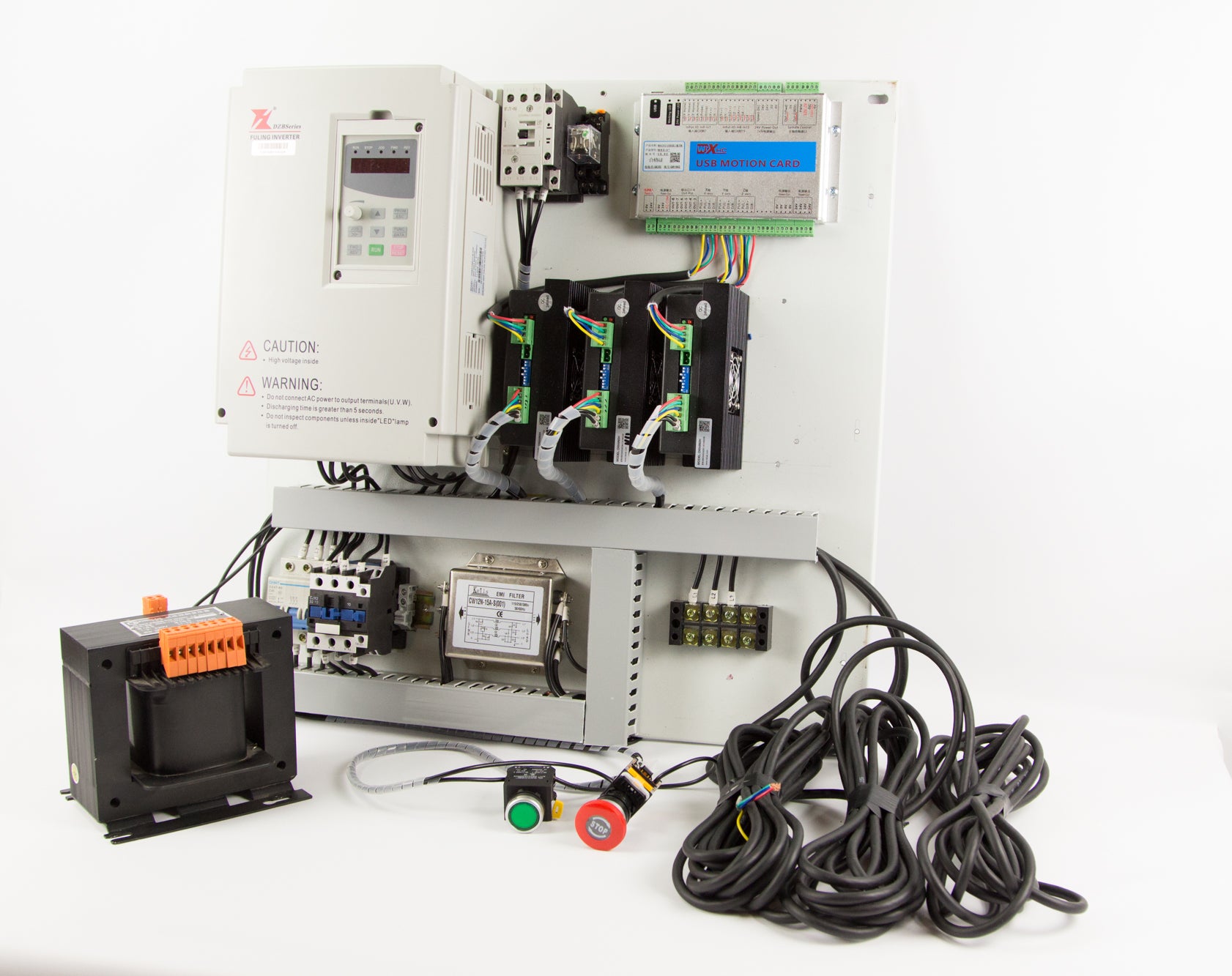

This is a control panel is used to control, cnc lathes, cnc over head milling machines and cnc table routers. The Mach 3 control panel allows you to control 3 axis using the supported Mach 3 software available directly from Mach 3. It is possible to add more axes and if you need two motors to control your Y axes that can be added with the appropriate gear. Mach 3 is already installed on this particular panel. However, if you need a different controller please call us. We can build a custom panel around your specific needs.

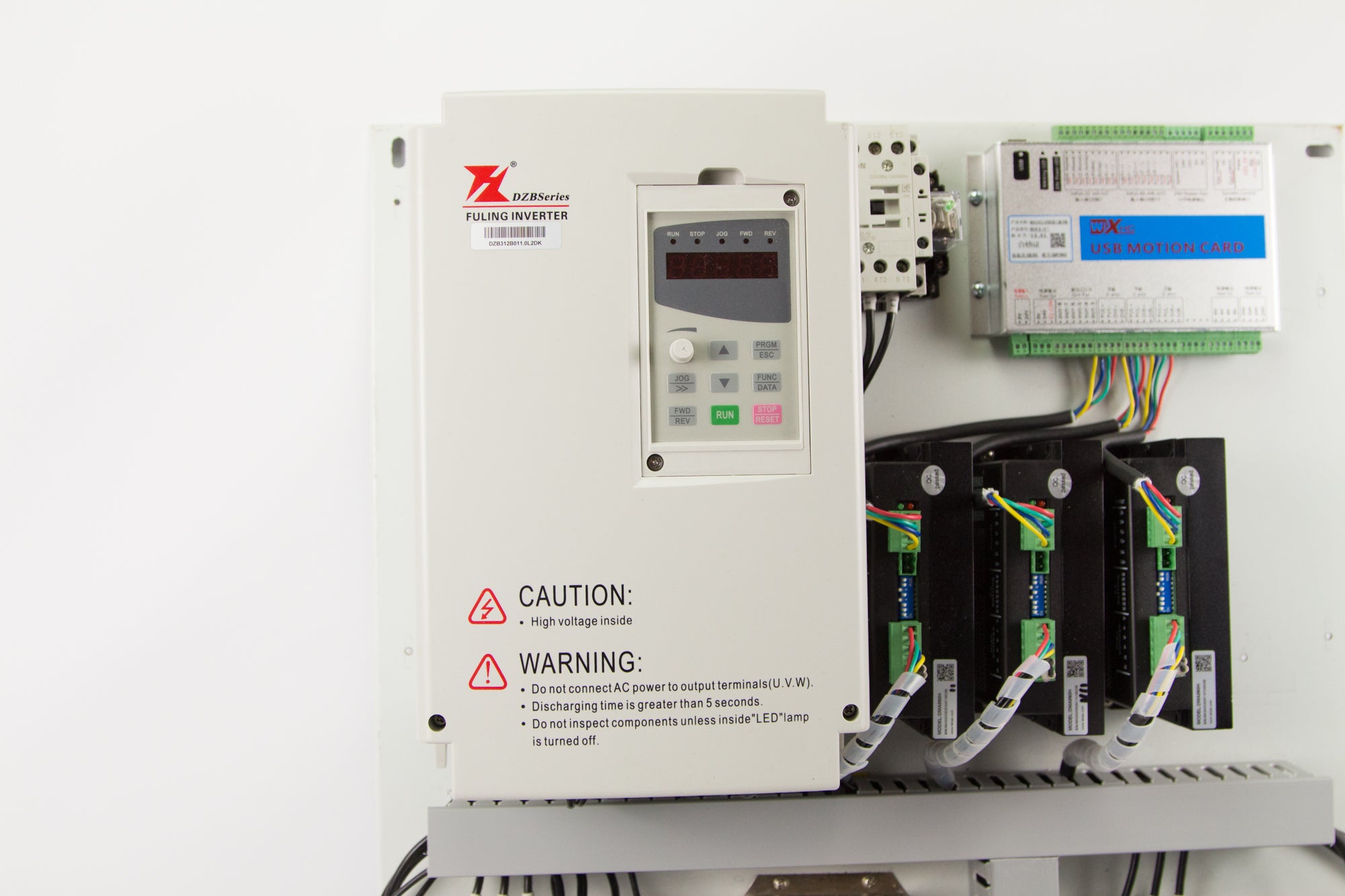

- 11 KW Inverter

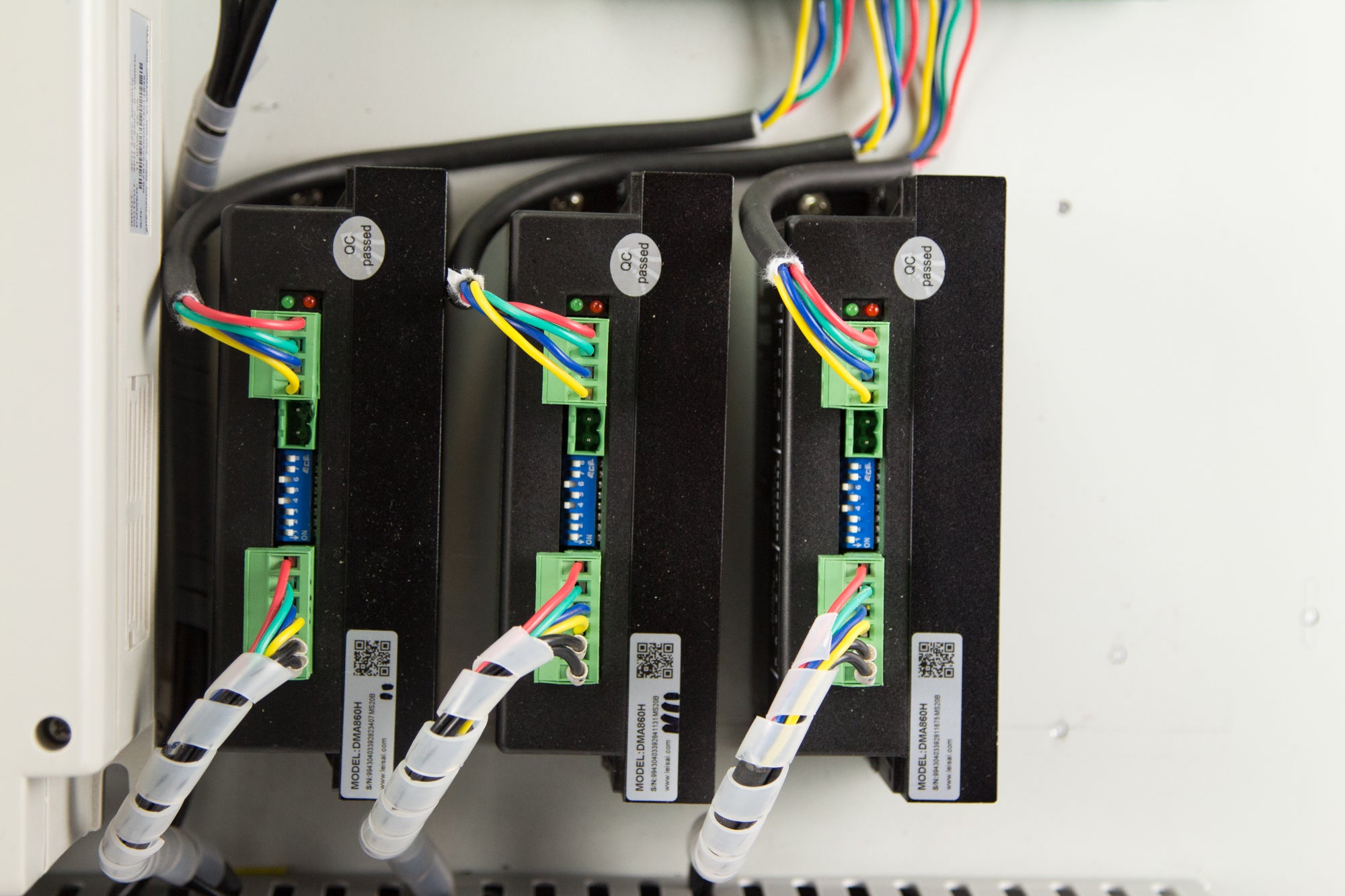

- 3 Leadshine Stepper Drives ( DMA860H)

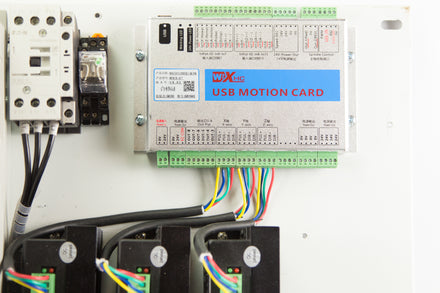

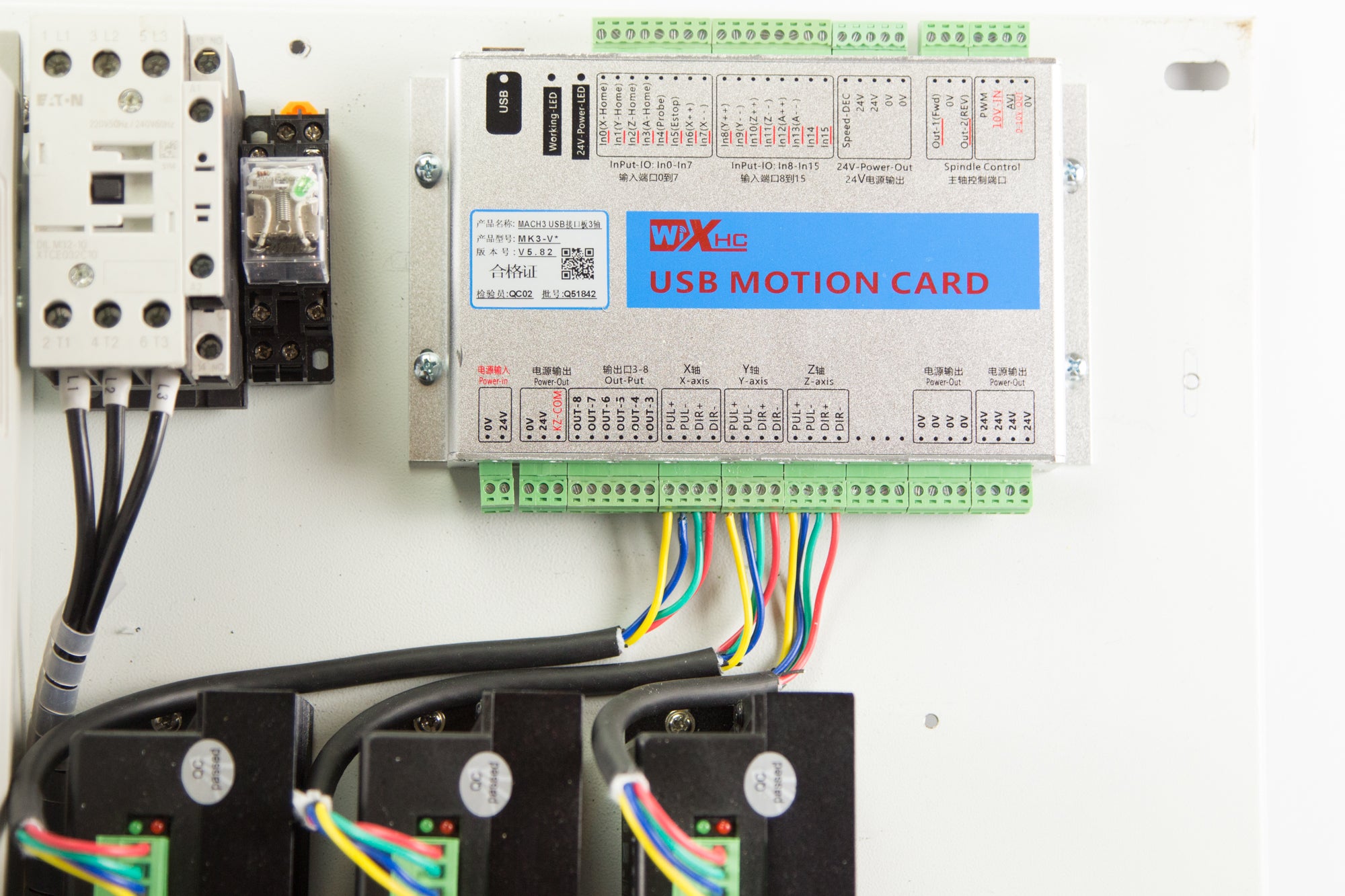

- Mach 3 Version 4 motion controller with USB

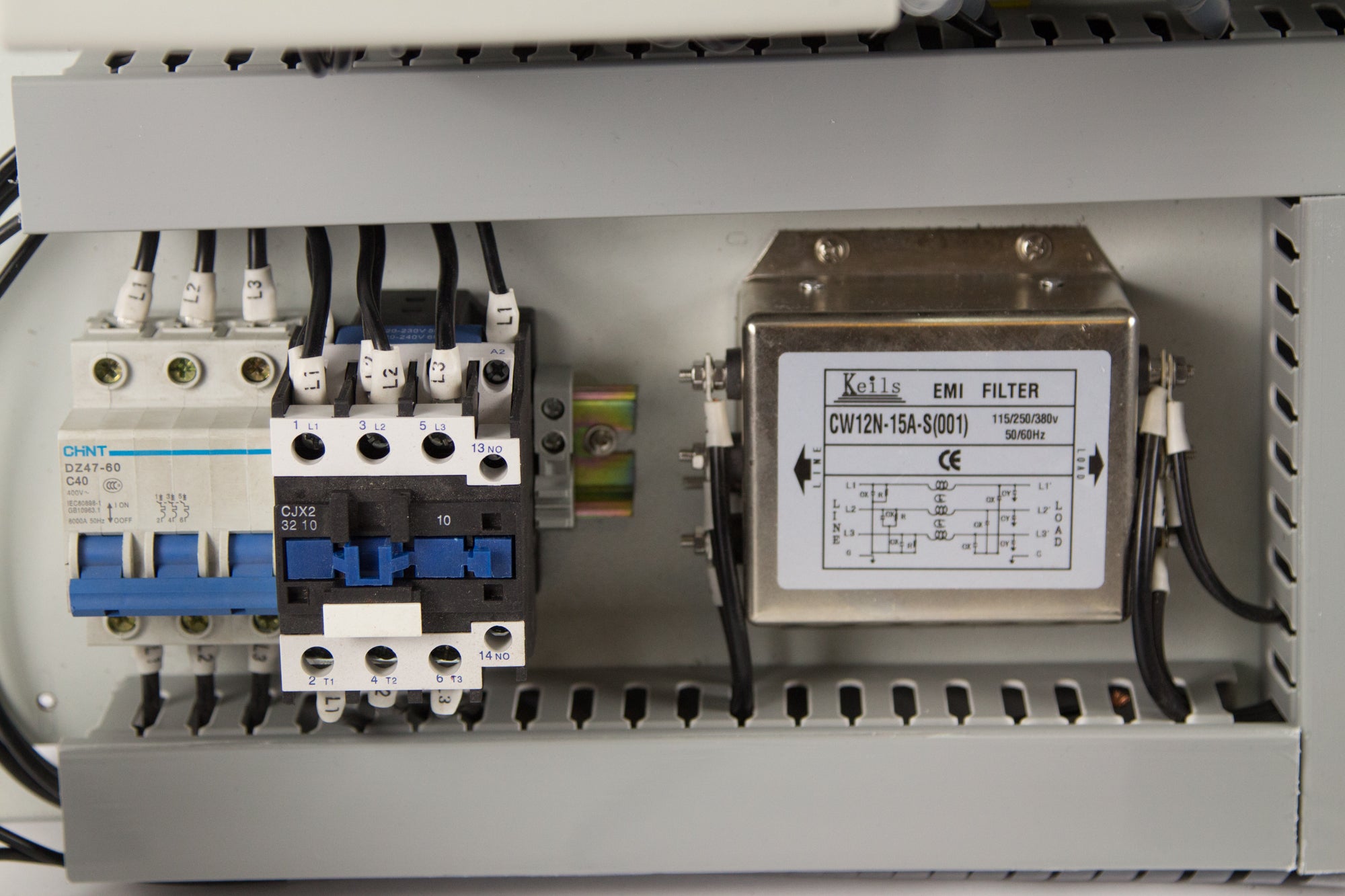

- Includes 3 Phase Line filter

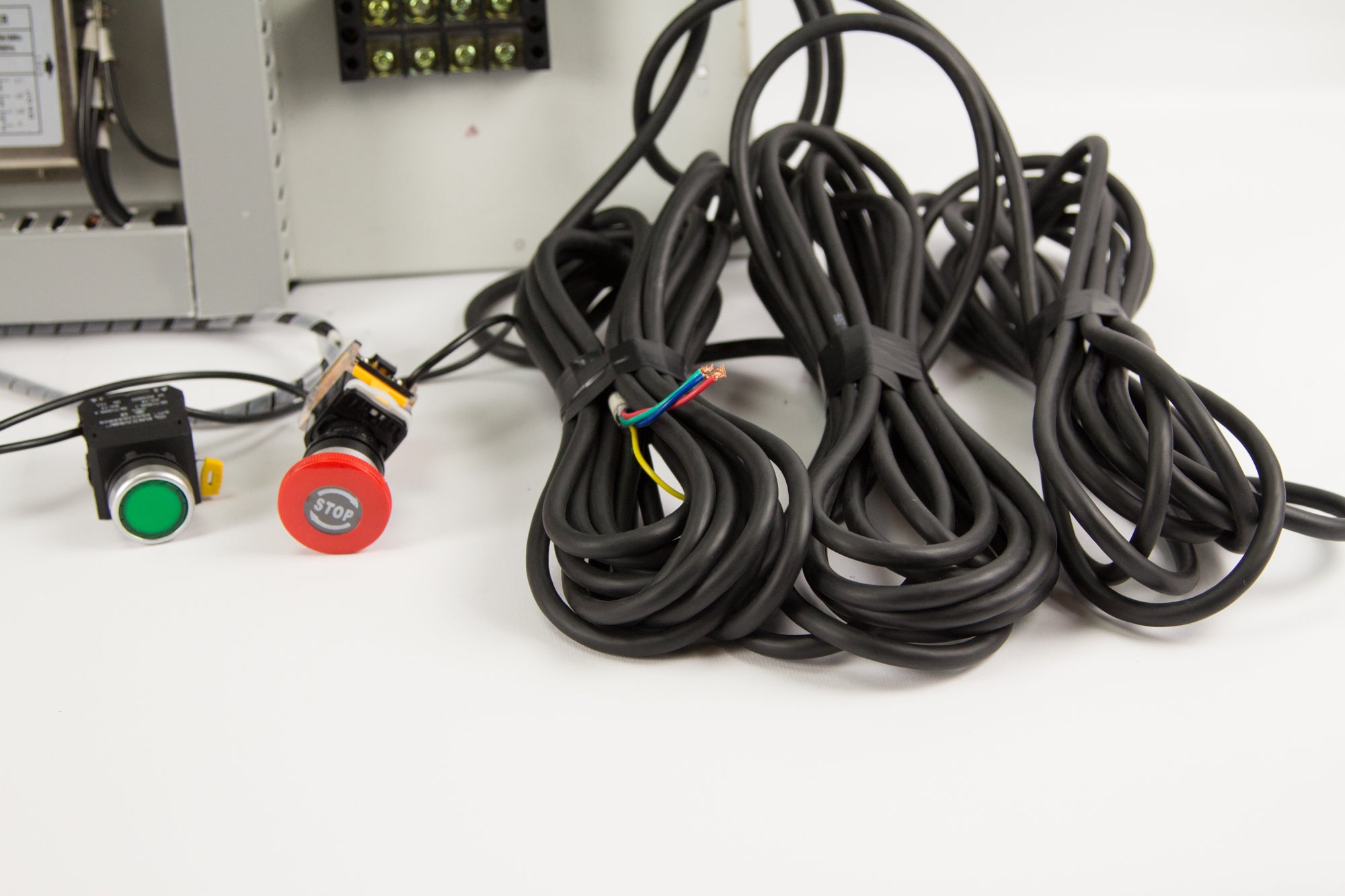

- Emergency push stop button
- Power button
- 1 Circuit Breaker

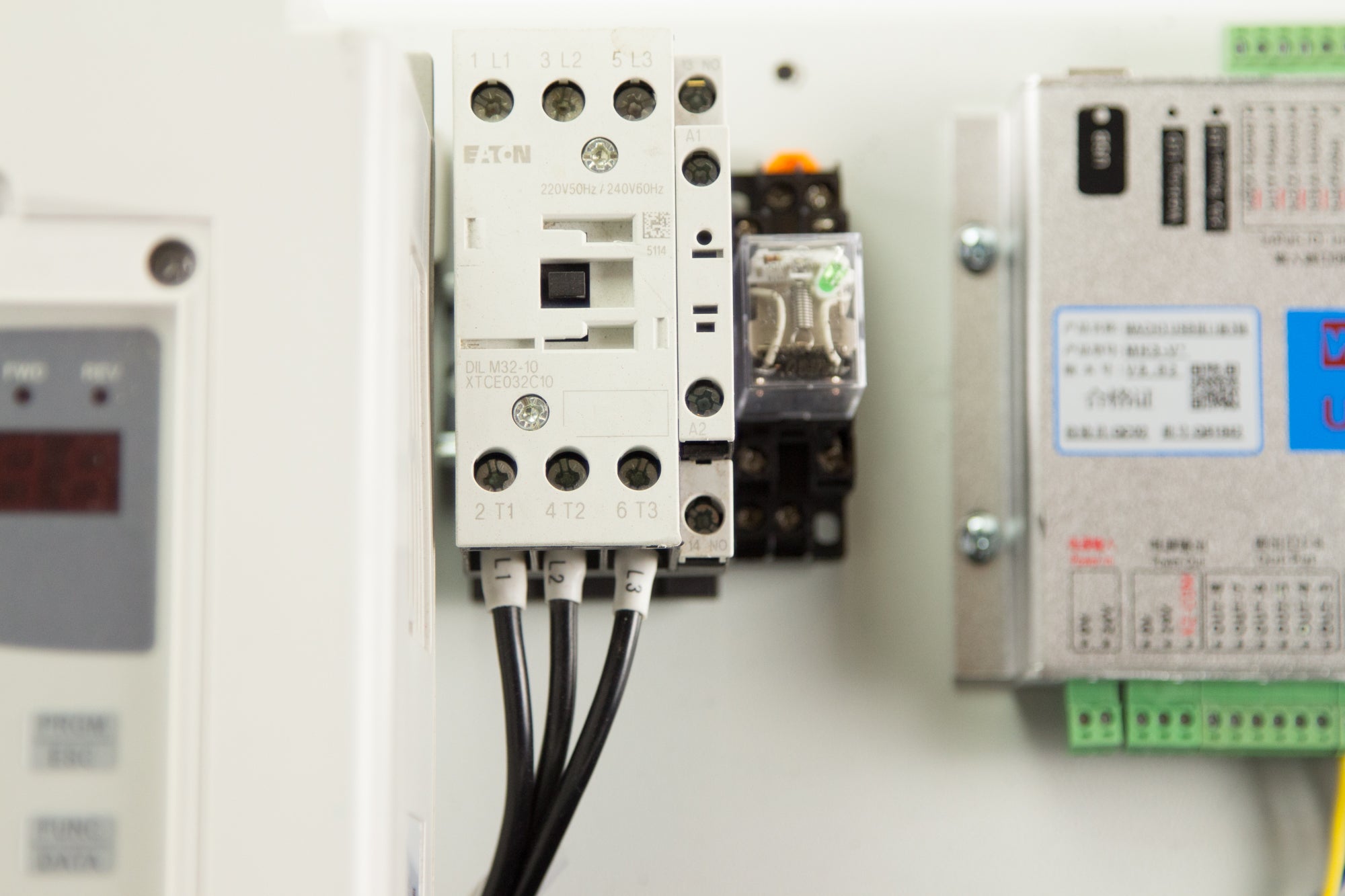

- 1 Contactor
- 1 24V Relay

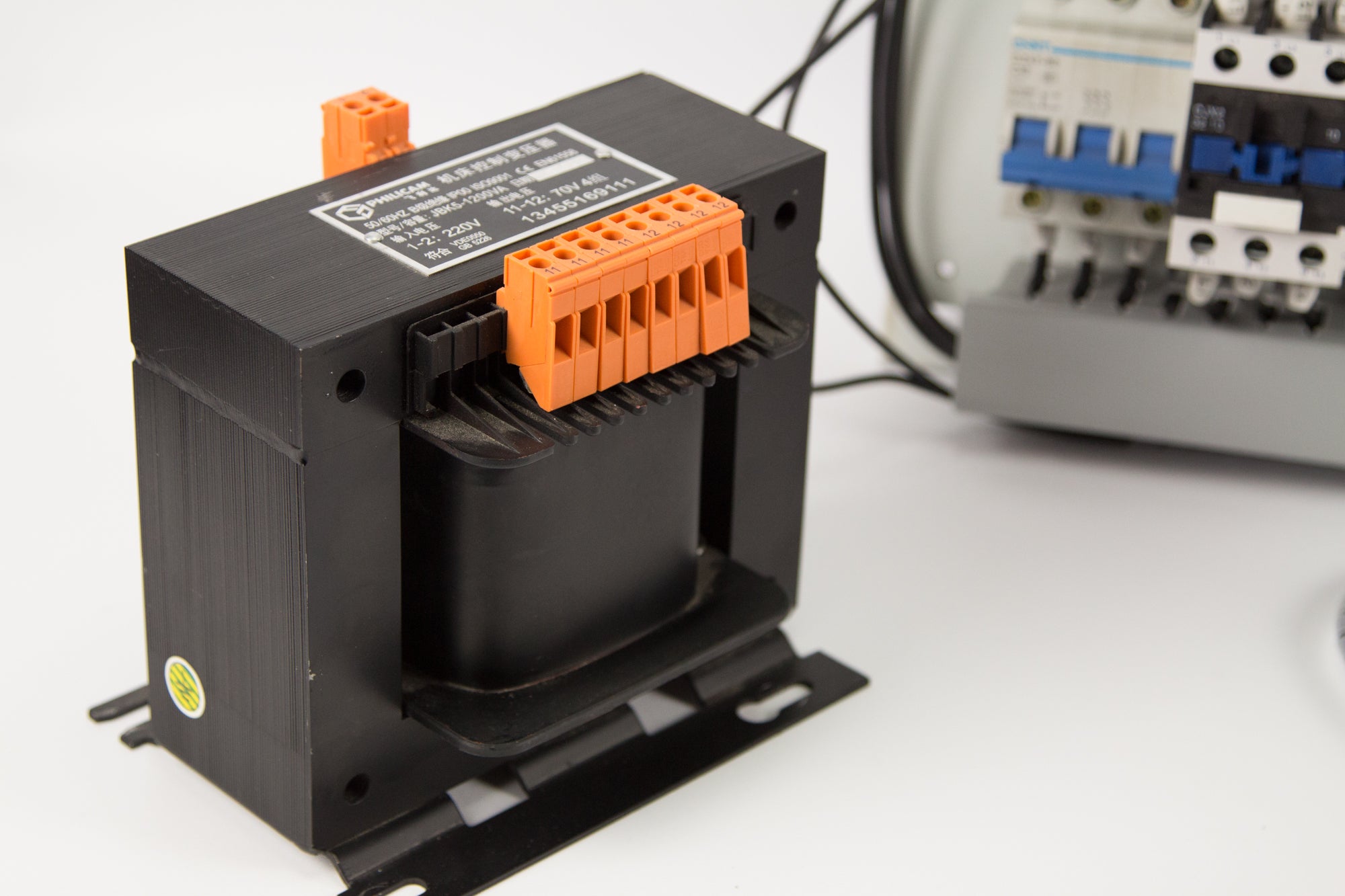

- 70V Power Supply Included
- 24V Power Supply Included (Not shown in picture)
- 15Ft Motor Cables included
- CNC Cabinet Enclosure with wheels.
- Cut out for Monitor
- Keyboard and mouse pull out drawer
- Storage rack with door under keyboard & mouse drawer
- Front access panel with door to install CNC Board
- Rear access panel with door for extra electrical components if needed.
- Comes pre-drilled for push start and emergency buttons
- 72in x 24in x 22in
