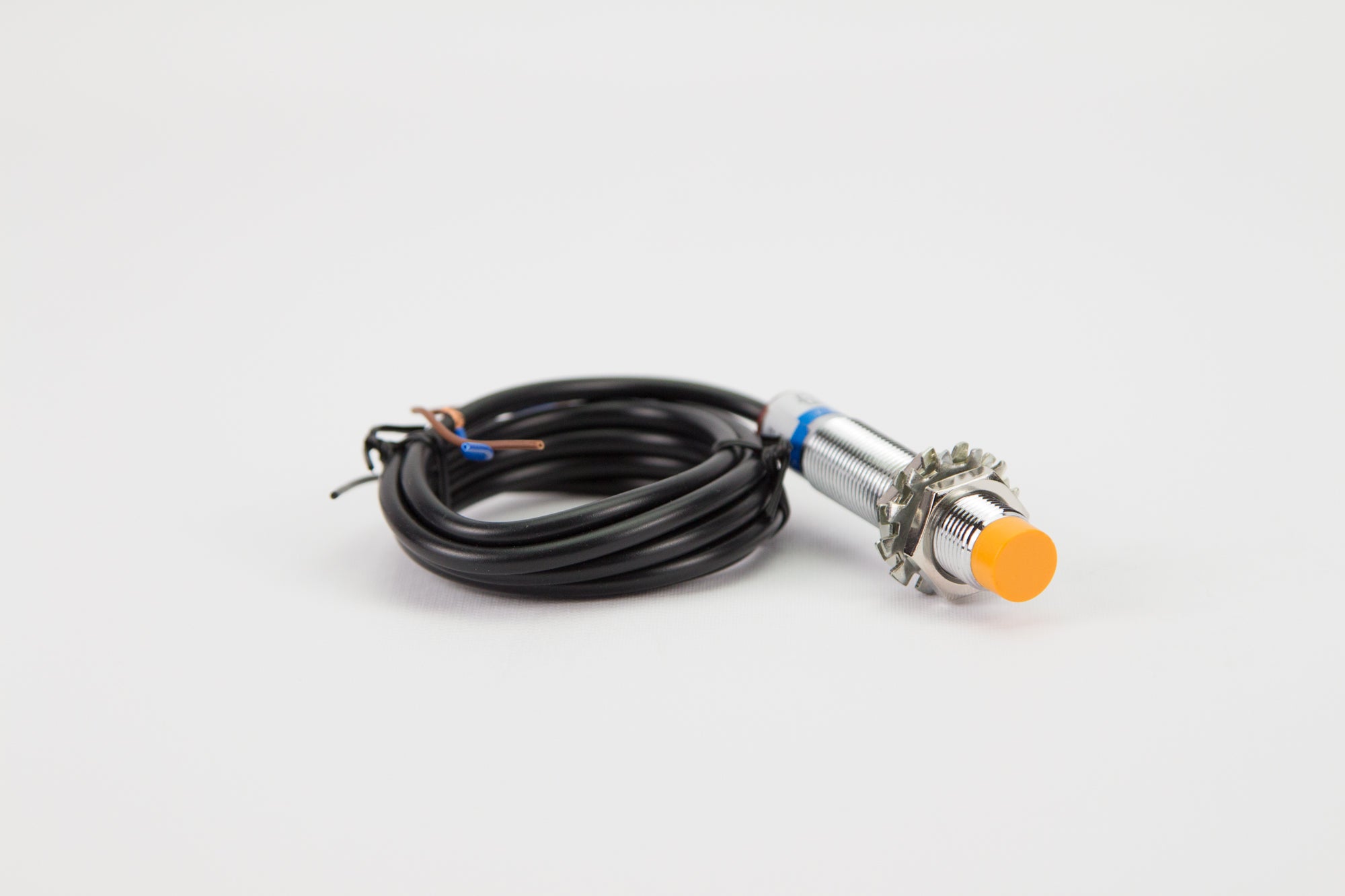

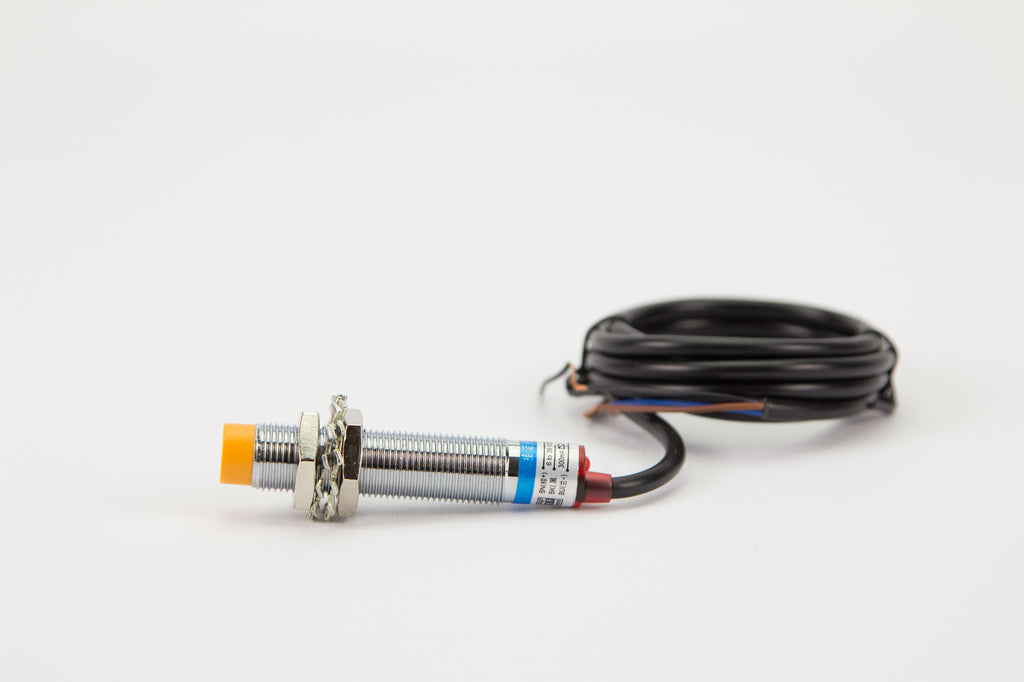

Proximity switches, also known as non-contact proximity switch, is the ideal electronic switch sensor. When the metal detecting near-proximity switch sensing area.
Switches can be non-contact, no pressure, no spark, quickly issued electrical command,  accuracy, operating frequency, service life. Easy to install and suitable for harsh environments the ability to adjust. General mechanical limit switch can not be compared.

Operating Voltage : DC 6-36V range within Universal
Output Type : PNP normally open three-line
Detection object : metal objects
Detection distance : 4 mm
Output Current : 300 mA
Response Frequency : 0.5KH
Working temperature : Temperature range -30 ° - = 60 °, + 23 °,  within+ (-) 15% detection distance
Temperature range : -25℃ to + 60℃ within + (-) 10% detection distance
Dimensions : 12 mm screw diameter
Cable length : about 115 cm
Material : Metal and plastic
