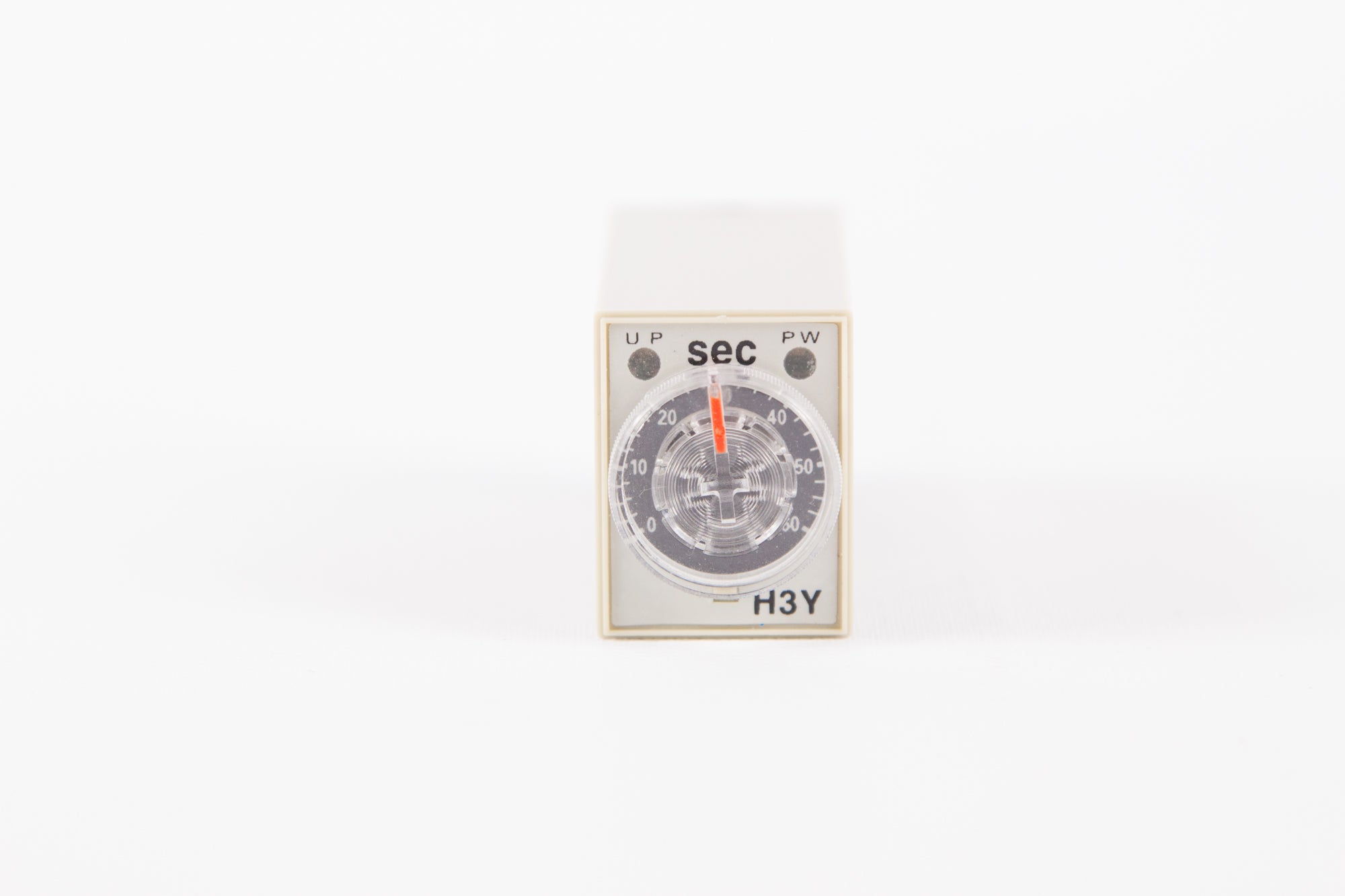

The time relay is widely used in the industrial automation control system and mechanical equipment.High accuracy, low power consumption and long service life. Big contact capacity, wide voltage range. The transparent time setting knob facilitates time setting. A flat-blade and Phillips screwdriver can also be used for time setting.

- Model: H3Y-2

- Time range: 0s ~ 60s

- Rated voltage: AC 110V

- Frequency: 50/60Hz

- Contact rating: AC 250V/5A (Resistive load)

- Power consumption: =5W

- Mechanical life: 10000000 times

- Electrical life: 500000 times

- Operating temperature: -10°C to 50°C

- Size: 53 x 28 x 22mm/2.1'' x 1.1'' x 0.9''
