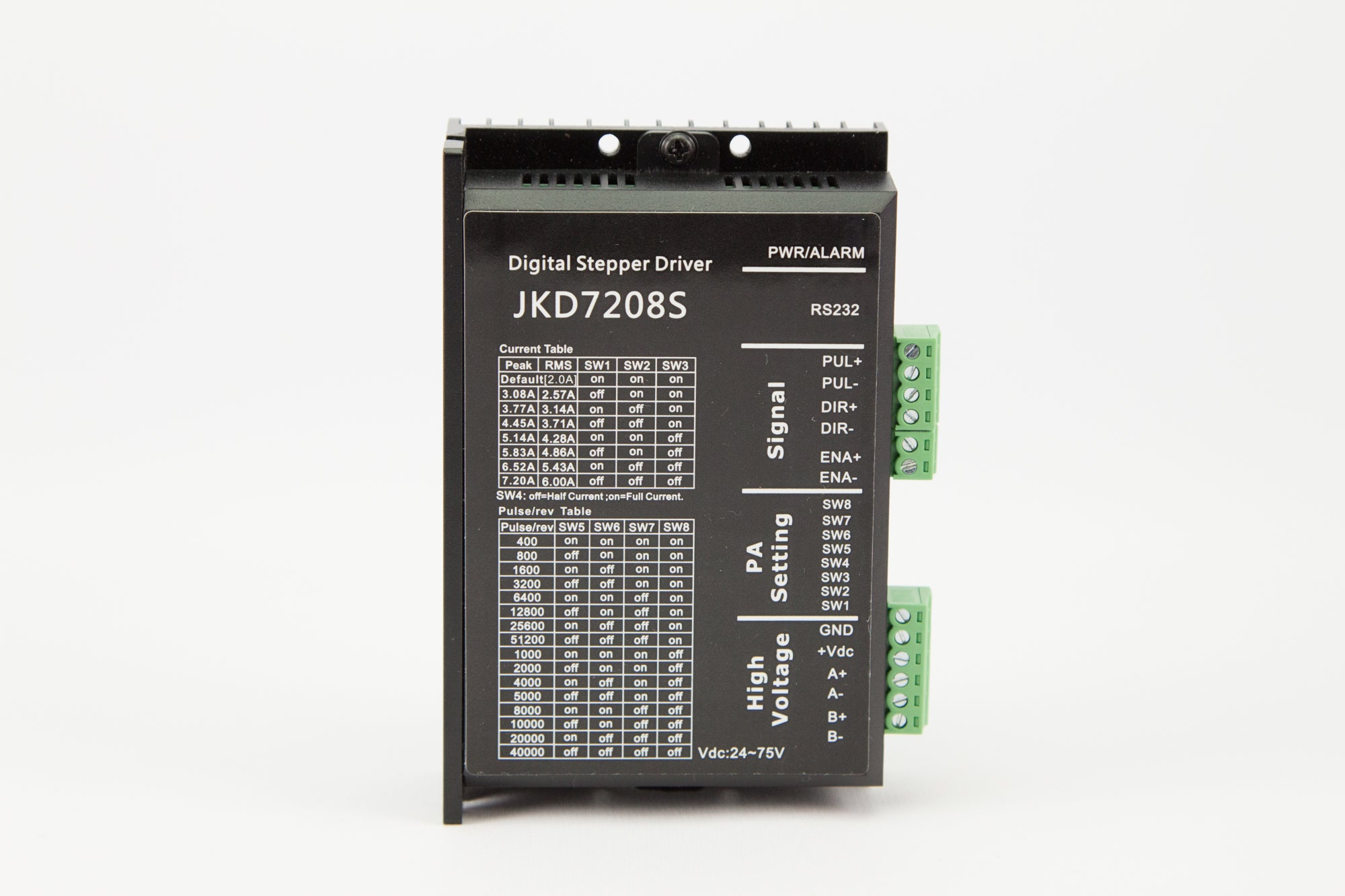

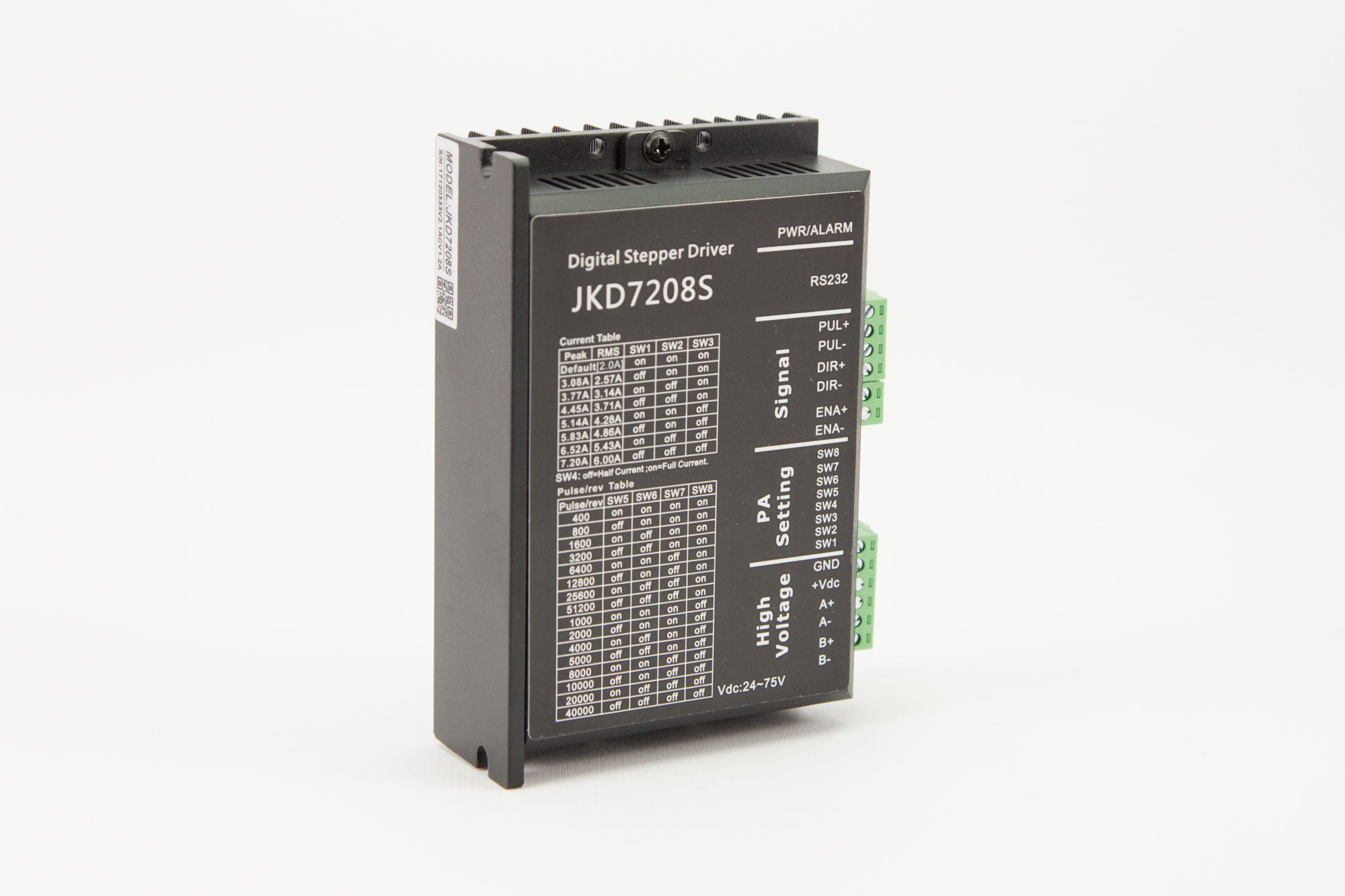

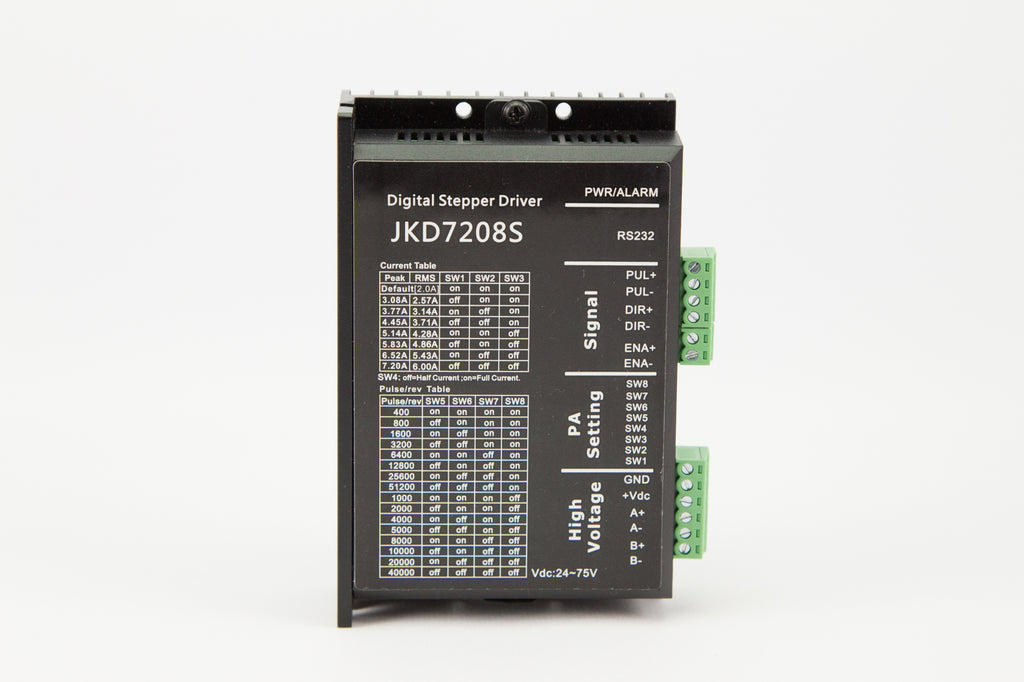

The JKD7208S adopts the latest 32-bit DSP digital processing technology. The drive control algorithm adopts advanced variable current technology and advanced frequency conversion technology. The driver has a very small heat signature, small motor vibration and stable operation. Users can set any subdivision within 200 ~ 51200 and any current value in the rated current to meet application needs in most occasions. Thanks to the built-in micro-subdivision technology, the subdivision effect can be achieved even under the condition of low subdivision. The operation is smooth and the noise is ultra-small under low, medium and high speed. The driver integrates the parameter auto-adjust function, which can automatically generate optimal operating parameters for different motors to maximize the performance of the motor.

New 32-bit DSP technology

Can drive two phase stepping motors of 4,6,8 lines

Ultra-low vibration noise

Optical isolation differential signal input

Built-in high subdivision

The pulse response frequency can reach to 500KHZ(Factory default 200KHZ)

Automatic parameter adjustment function when power is on

The current setting is convenient and can be set between 0.1 to 7.2A

Variable current control reduces the heating of the motor

Subdivision setting range is between 200 to 51200
