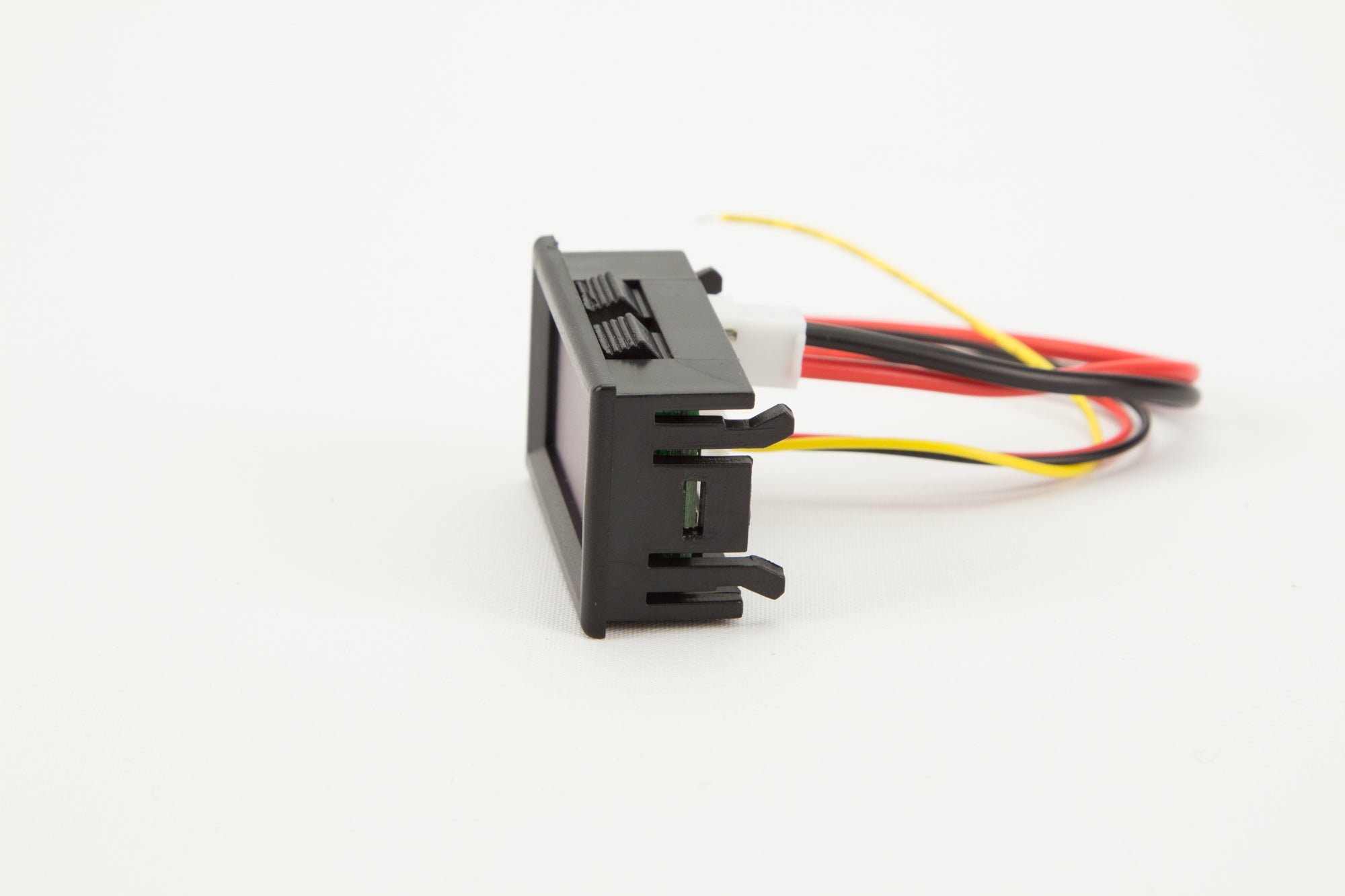

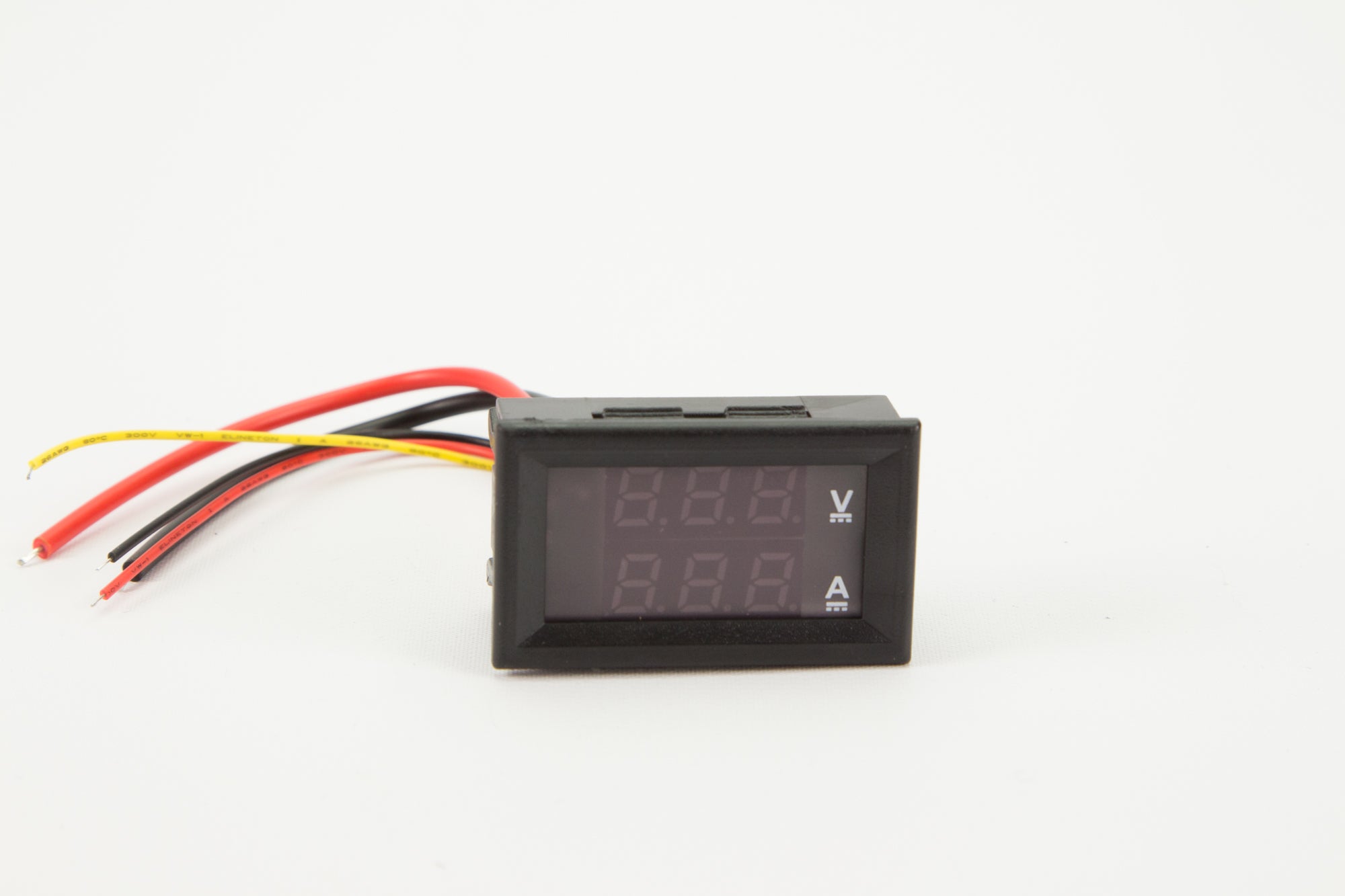

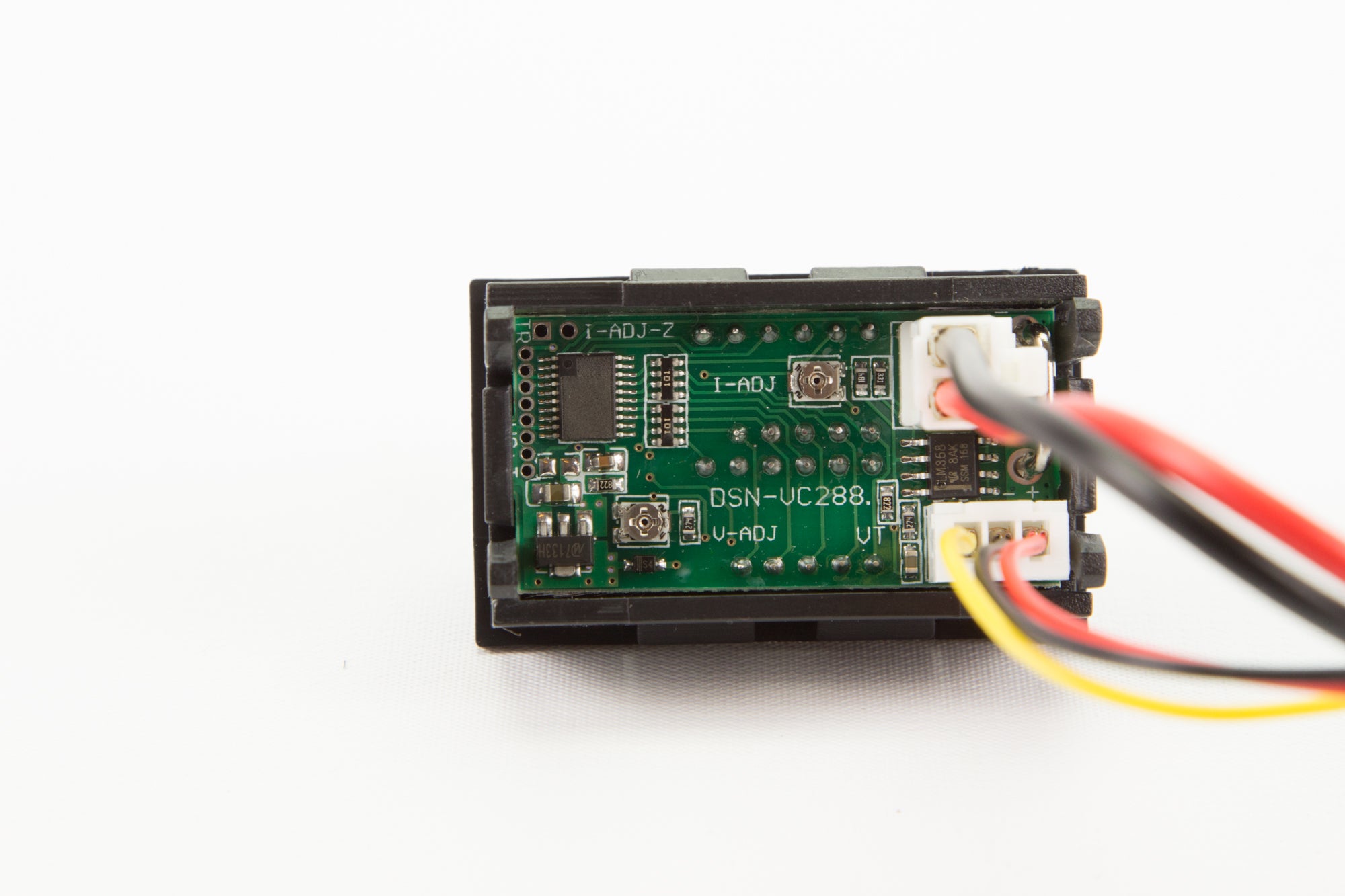

Dual display voltage meter head VC288

Voltage measurement range: 0.0V-100V Max.

Current test range: 0-999mA, 0-10A, 0-50A, 0-100A

Power supply range:  4.5V ~ 24V

Working current: < 20mA

Voltage error: ±0.1%

Current error: ±1%

External shunt specifications: 75 milli volt

Refresh rate: 300mS

Display method: 2 by 3, 0.28 "7-Seg LED

Display color: Red = V, Blue = A

Lead length: 15cm

Dimensions: L=48 x H=29 x T=22 mm

Mounting holes: 46 x 27 mm

Operating temperature: -10 C~65°C
